Rail selection

There are four different rail categories available, and each one is optimized for a specific purpose.

• The standard HS module serves the attachment of hat profile-suitable devices.
• Screw attachment without drilling allows integration of the sliding nut channel.
• The dinrail profile module comprises a strip with a 7.5 mm high and 35 mm wide dinrail profile with sliding nut channel, standard combs, two assembly brackets, including insulation, and edge protection.
• The HS module is available in the following heights: 40, 60, 80, 100, 120, 140 and 160 mm.

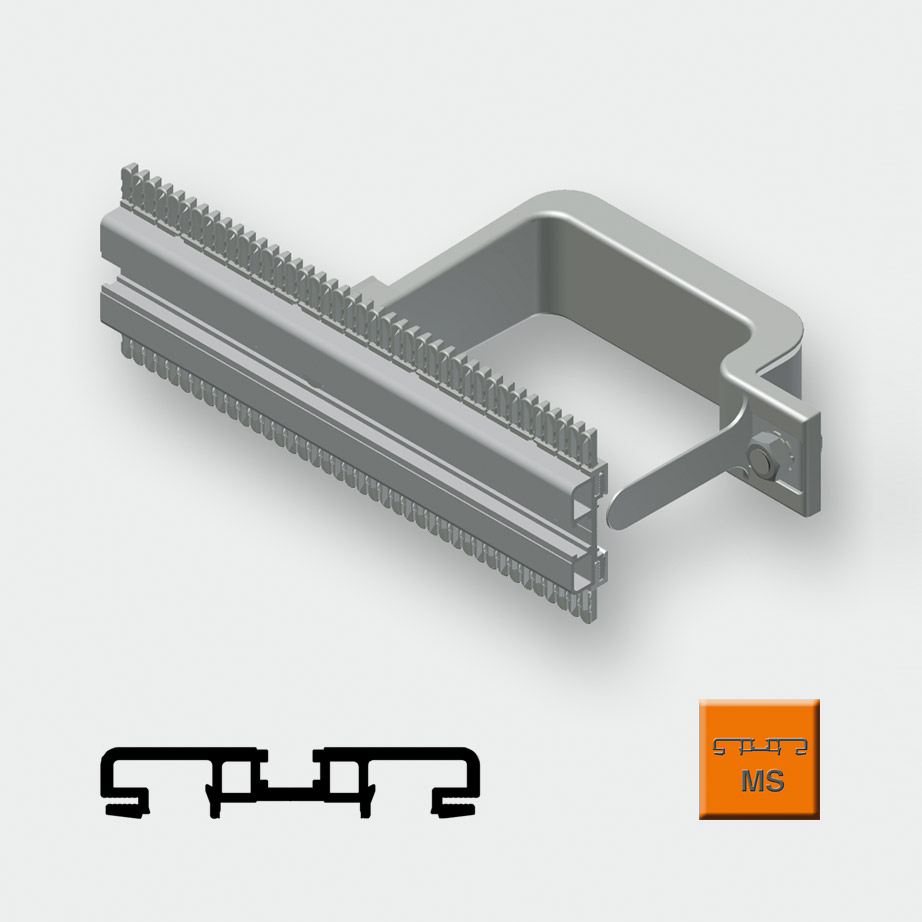

• The standard MS module serves to install devices onto smooth surfaces via a sliding nut channel.
• The module has a symmetrically arranged sliding nut channel, standard combs, two assembly brackets, incl. insulation, and edge protection.
• The MS module is available in the following heights: 40, 80 100 120 and 180 mm.

• The standard HA module serves the attachment of dinrail profile-suitable devices with dinrail profile attachments that are asymmetrical to the casing.
• The dinrail profile module HA comprises a strip with a 7.5 mm high and 35 mm wide dinrail profile with sliding nut channel, standard combs, two assembly brackets, including insulation, and edge protection.
• The HA module is available in the following heights: 140 and 160 mm.

• The standard MA module serves the attachment of devices without hat profiles.
• The module comprises a smooth profile and has two asymmetrically arranged sliding nut channels, standard combs, two assembly brackets, including insulation, and edge protection.
• The MA module is available in a height of 80 mm.
