Ethernet Connectivity Kits
In industrial automation, IIOT has driven the need and the necessity for data providing information for OEMs and End users alike, to optimise their processes. Ethernet has become the de-facto backbone providing the data at high speeds (Cat5e up to Cat7) needed for real-time applications. So it’s imperative the data doesn’t get corrupted through its transmission.
At Lutze we manufacture cables and connectivity suitable for industrial applications supporting networks such as Profinet, Ethernet IP, Ethercat, Powerlink as examples with the correct construction to minimise data packet loss.
To help with selecting the correct products we have created a series of kits to ensure you maximise the speed for your application.
Available from your local distributor
Inside Kit: NLETHINSIDEKIT
Contains:
492075
192000.0100
192000.0200
192000.0300
192000.0500
490209
NLETHINSIDEKIT - Our inside the panel accessories bundle contains an RJ45 panel connector, a 1m, 2m, 3m & 5m shielded patch cable and a DIN rail mountable interface from field bus cables directly to patch cables.

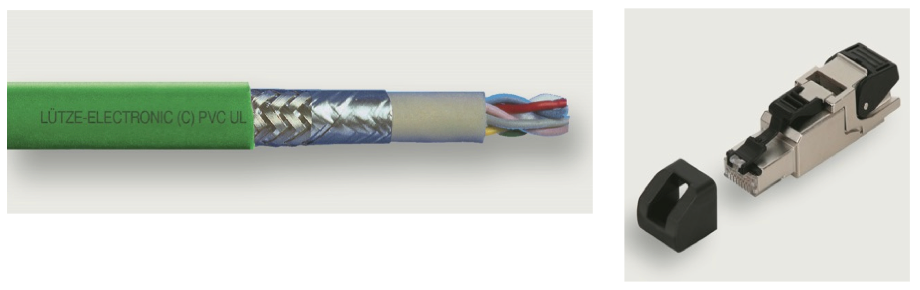

OUTSIDE Kit: NLETOUTSIDEKIT
Contains:
104335
490138 x2
NLETHOUTSIDEKIT – This UL Recognised Industrial field bus cable can be wired into field bus systems with the globally recognised TCP/IP protocol. This cable is designed for harsh industrial environments and operating conditions with high noise levels.
This CAT 5e cable contains 4 twisted cores (8 cores in total) as well as braided and foil shielding to resist EMC interference. This bundle is recommended for fixed applications with some flexibility, but for flexibility exceeding over 10 million testing cycles, ask about our SUPERFLEX Industrial Ethernet Cables.
Every 50m of cable comes with two half price, easy to assemble, connectors!
OUTSIDE Kit: NLETOUTSIDEKIT2
Contains:
104301
490128 x2
NLETHOUTSIDEKIT2 - This UL Recognised Industrial field bus cable can be wired into Field bus systems with the globally recognised TCP/IP protocol and is ideal for Profinet Applications. This cable is designed for harsh industrial environments and operating conditions with high noise levels.
This CAT 5e cable contains 2 twisted cores (4 cores in total) as well as braided and foil shielding to resist EMC interference. This bundle is recommended for fixed applications with some flexibility, but for flexibility exceeding over 10 million testing cycles, ask about our SUPERFLEX Industrial Ethernet Cables.
Every 50m of cable comes with two half price, easy to assemble, connectors!

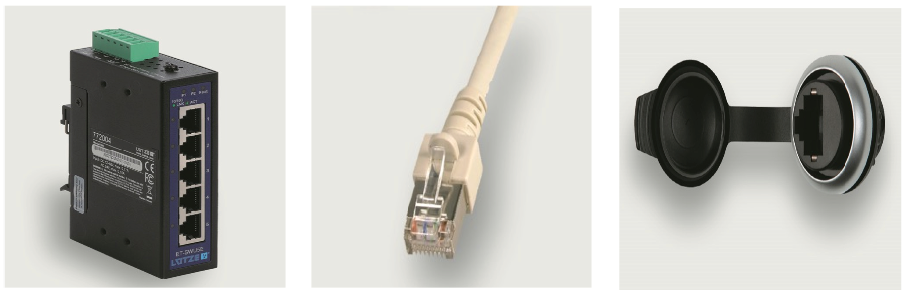

772004KIT
Contains:
492075 x1
192000.0100 x2
192000.0200 x2
192000.0300 x1
772004 x1
772004KIT – Lutze’s Ethernet Compact (ECO) Switches utilise Quality of Service to prioritise signals, giving fast communications speeds for important signals while reducing the amount of power required to transmit depending on the length of the cables connected.
This bundle contains a 5 port ECO Switch (10/100 bit/s speed) with 2 each of 1m & 2m and 1x5m Industrial Ethernet Patch Cables. Lutze’s Ethernet Patch cables are designed to resist EMC interference with braided and foil shielding.
This bundle also contains a 492075 RJ45 panel connector, to allow communication with components inside the cabinet.

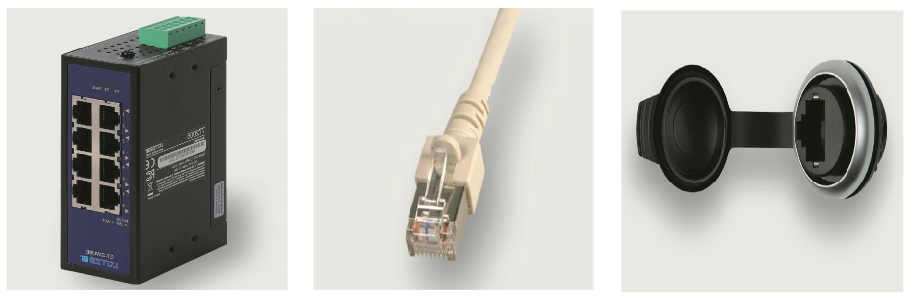

772006KIT
Contains:
492075 x1
192000.0100 x2
192000.0200 x2
192000.0300 x2
192000.0500 x2
772006 x1
772006KIT – Lutze’s Ethernet Compact (ECO) Switches utilise Quality of Service to prioritise signals, giving fast communications speeds for important signals while reducing the amount of power required to transmit depending on the length of the cables connected.
This bundle contains an 8 port ECO Switch (10/100 bit/s speed) with 2 each of 1m, 2m, 3m and 5m Industrial Ethernet Patch Cables. Lutze’s Ethernet Patch cables are designed to resist EMC interference with braided and foil shielding.
This bundle also contains a 492075 RJ45 panel connector, to allow communication with components inside the cabinet.

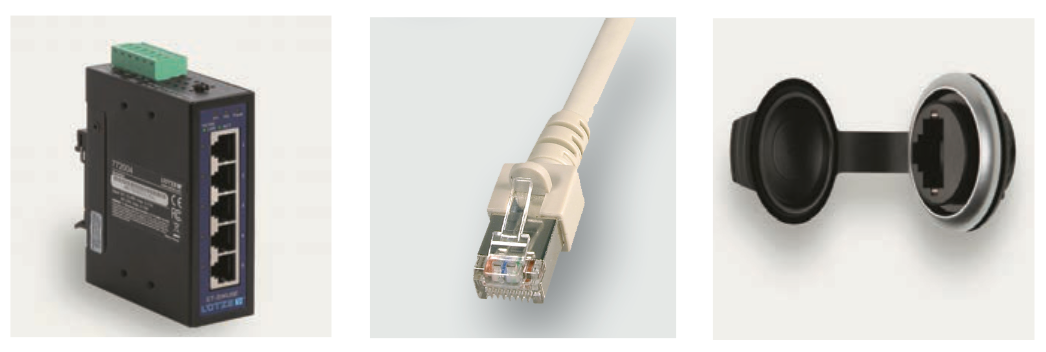

772013KIT
Contains:
492076 x1
192353.0100 x2
192353.0200 x2
192353.0300 x1
772013 x1
772013KIT – Lutze’s Ethernet Compact (ECO) Switches utilise Quality of Service to prioritise signals, giving fast communications speeds for important signals while reducing the amount of power required to transmit depending on the length of the cables connected.
This bundle contains a 5 port ECO Switch 1 Gbit speed with 2 x 1m & 2m, 1 x 3m Industrial Ethernet Patch Cables. Lutze’s Ethernet Patch cables are designed to resist EMC interference with braided and foil shielding.
This bundle also contains a 492076 Cat.6A RJ45 panel connector, to allow communication with components inside the cabinet.

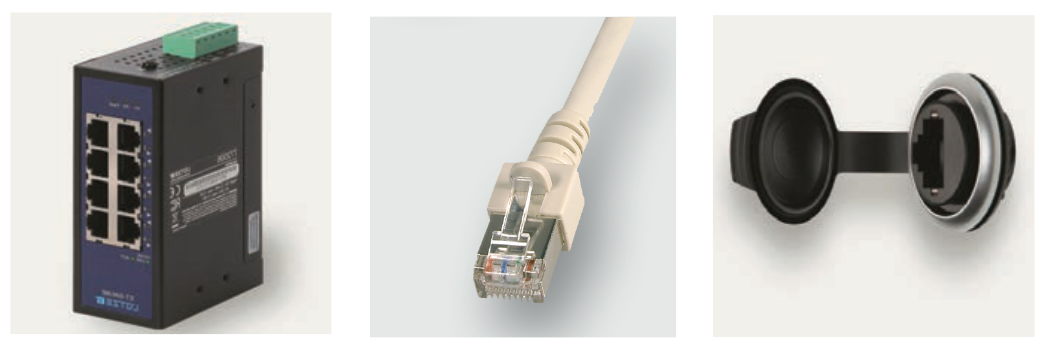

772015KIT
Contains:
492076 x1
192353.0100 x2
192353.0200 x2
192353.0300 x2
192353.0500 x2
772015 x1
772015KIT – Lutze’s Ethernet Compact (ECO) Switches utilise Quality of Service to prioritise signals, giving fast communications speeds for important signals while reducing the amount of power required to transmit depending on the length of the cables connected.
This bundle contains an 8 port ECO Switch 1 Gbit speed with 2 x 1m, 2m, 3m and 5m Industrial Ethernet Patch Cables. Lutze’s Ethernet Patch cables are designed to resist EMC interference with braided and foil shielding.
This bundle also contains a 492076 Cat.6A RJ45 panel connector, to allow communication with components inside the cabinet.

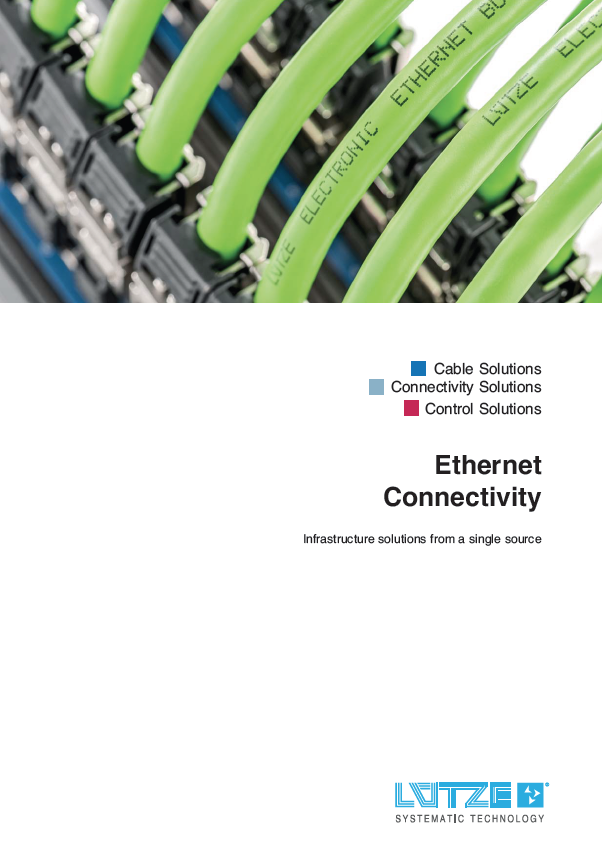

Ethernet Cables, Connectors and Switches Catalogue

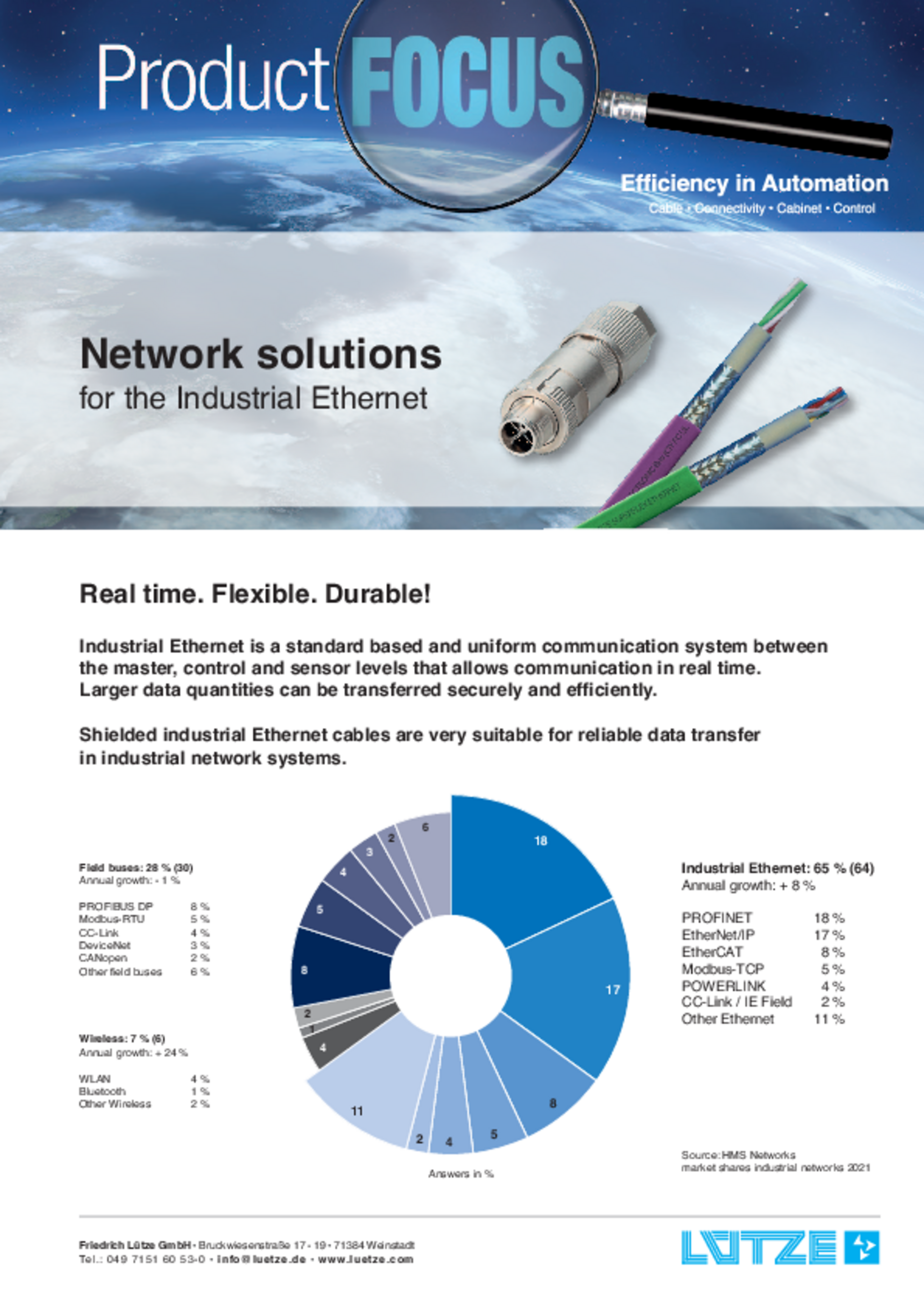

Network Solutions Product Focus

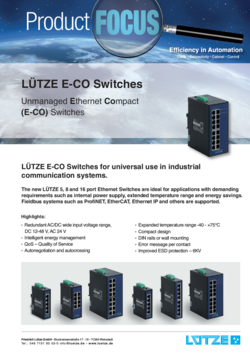

E-CO Switches Product Focus
